The heavy U-Shape Drain (T25) is a precast channel built to carry storm water, and power and telecommunication cable ducts, along the roads that take the most punishment. Each unit is cast, cured and tested in our Surat yard, then delivered to the trench as finished work — sealed, smooth-bored and ready to set.
Rated for a 5 T wheel load, the section takes traffic straight over the channel without flexing or cracking. It is the line we put under highways, crossings and industrial roads where the cover has to be as strong as the road around it.
Pouring drains in place means formwork, curing time and an open trench across active routes for days. Precast changes the maths — the channel arrives finished, sets in sequence with the civil works, and is sealed and trafficable almost as fast as it can be laid.
It carries storm water drains and power and telecommunication cable ducts along national highways, industrial estates and heavy crossings — anywhere the drain has to disappear into the road and carry load from day one.
Cast once, in a controlled yard. What reaches the trench is finished, trafficable work, not a job still waiting to be poured.
Takes a 5 T wheel load over the channel without flexing or cracking, batch after batch.
Cast and cured in the yard, then sealed and trafficable almost as fast as the units are laid.
A smooth precast bore keeps water moving and stops silt settling in the line.
Standard sections for the heavy-duty U-shape drain — for storm water drains and power and telecommunication cable ducts. Load carrying capacity: 5 T wheel load. Customized sizes available for mass quantity.

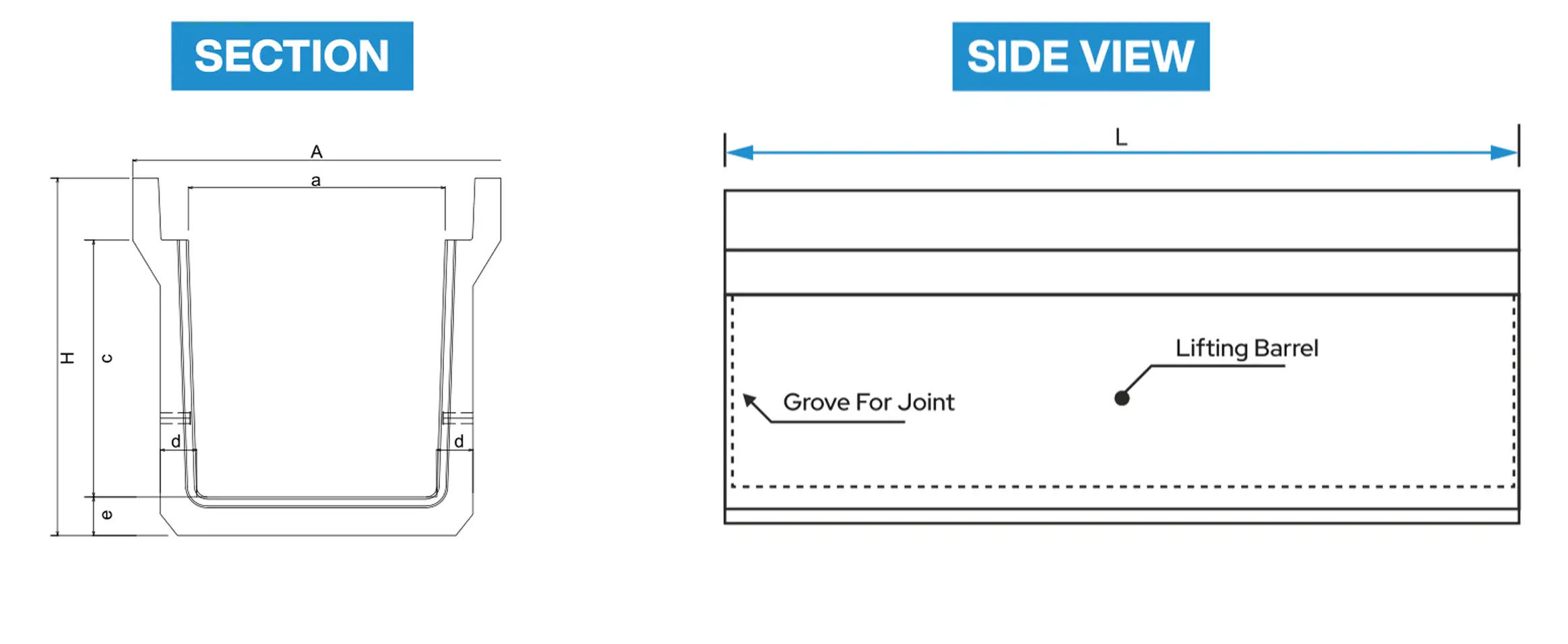

| Size a × c (mm) | L | A | H | a | c | d | e |
|---|---|---|---|---|---|---|---|
| 300 × 300 | 2000 | 540 | 480 | 300 | 300 | 70 | 70 |
| 450 × 450 | 2000 | 700 | 660 | 450 | 450 | 80 | 80 |
| 600 × 600 | 2000 | 860 | 835 | 600 | 600 | 90 | 90 |
| 750 × 750 | 2000 | 1050 | 1000 | 750 | 750 | 100 | 100 |
| 900 × 900 | 2000 | 1200 | 1170 | 900 | 900 | 120 | 120 |
| 1200 × 1200 | 2000 | 1500 | 1470 | 1200 | 1200 | 120 | 120 |

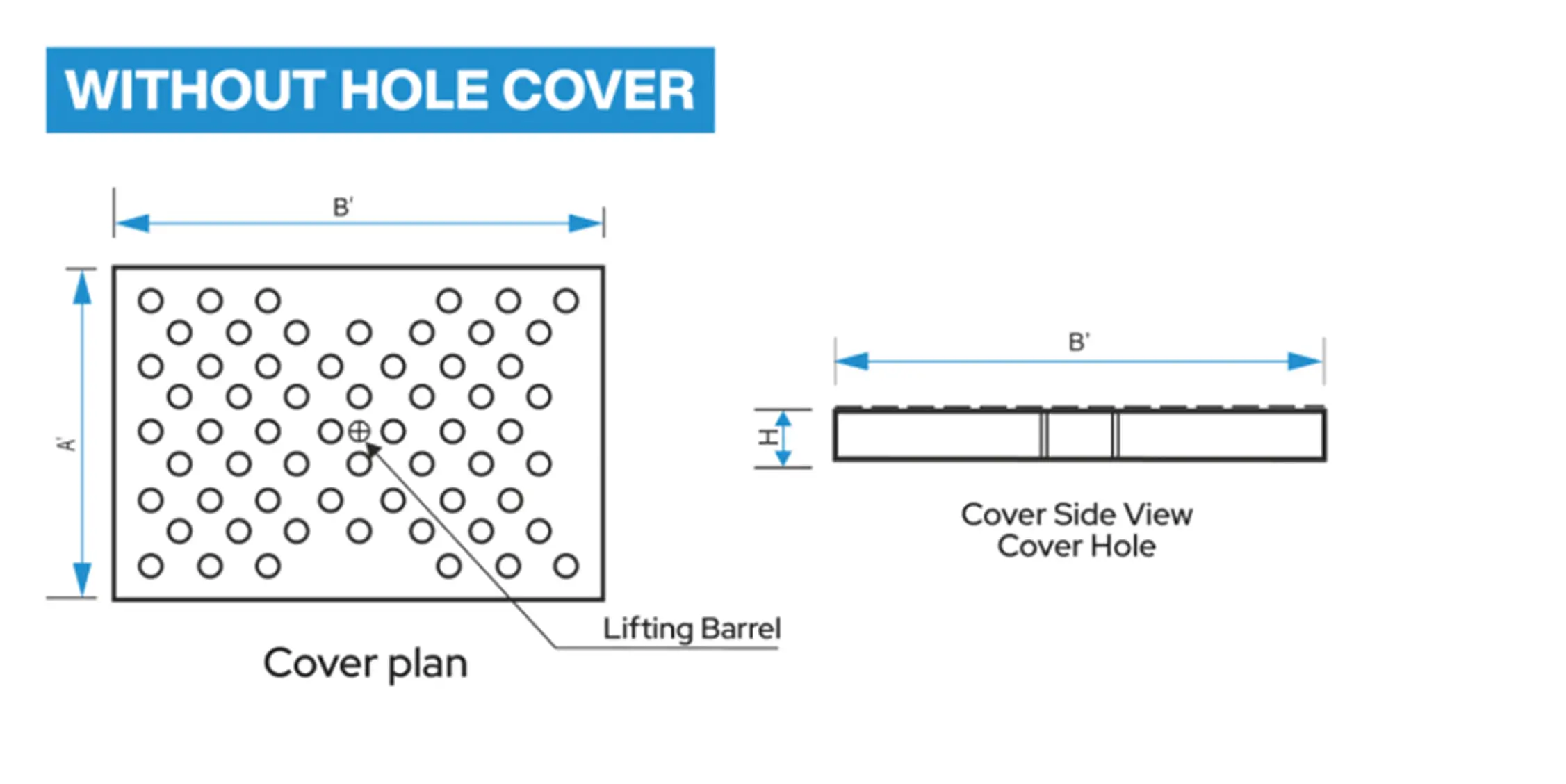

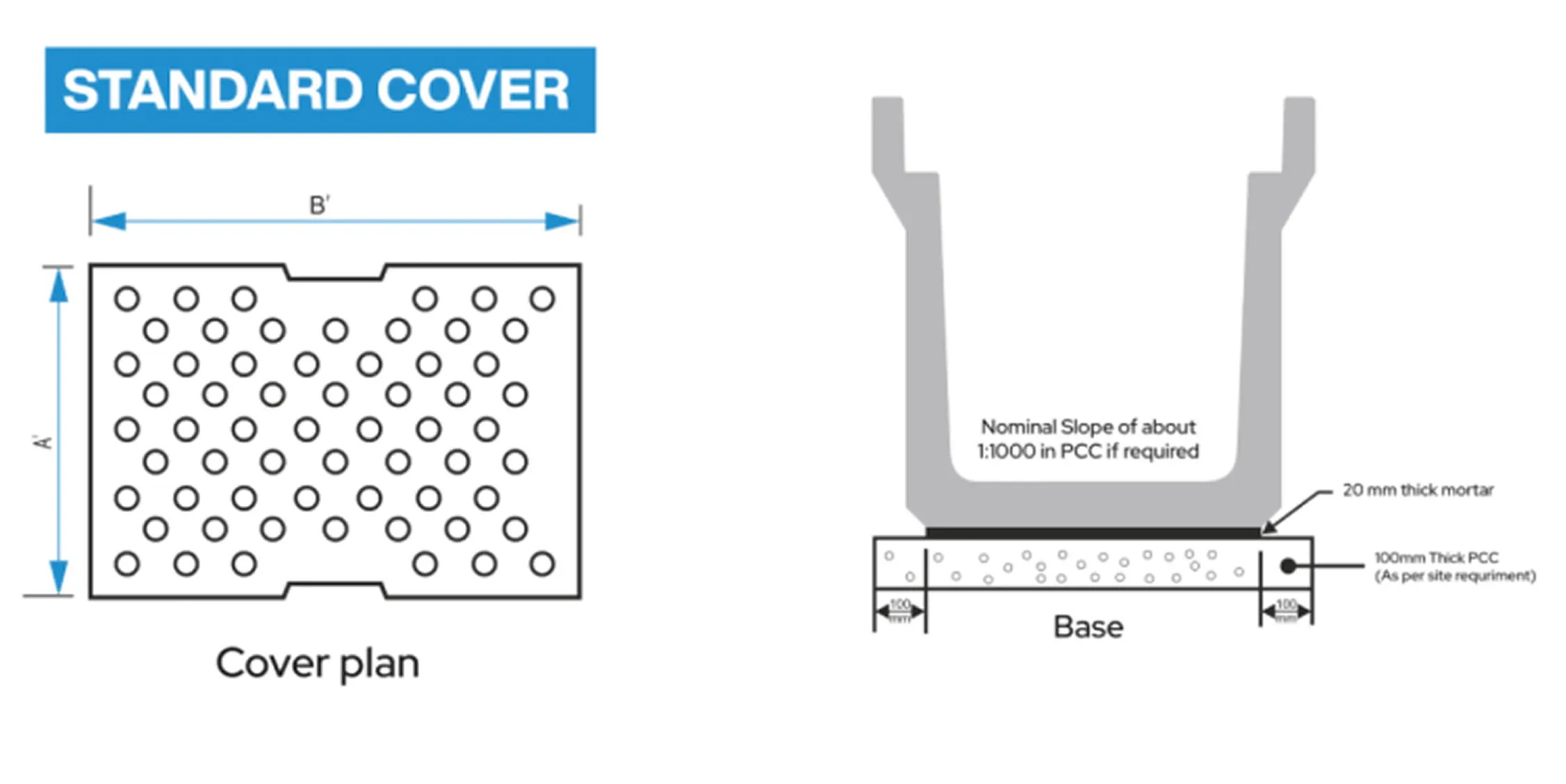

Two cover types: the standard cover (perforated, with lifting slots) and the without-hole cover, which lifts by a lifting barrel.
| Drain size A′ × B′ (mm) | A′ | B′ | H |
|---|---|---|---|
| 300 × 300 | 500 | 410 | 110 |
| 450 × 450 | 500 | 565 | 130 |
| 600 × 600 | 500 | 710 | 140 |
| 750 × 750 | 500 | 900 | 150 |
| 900 × 900 | 500 | 1050 | 150 |
| 1200 × 1200 | 500 | 1330 | 150 |

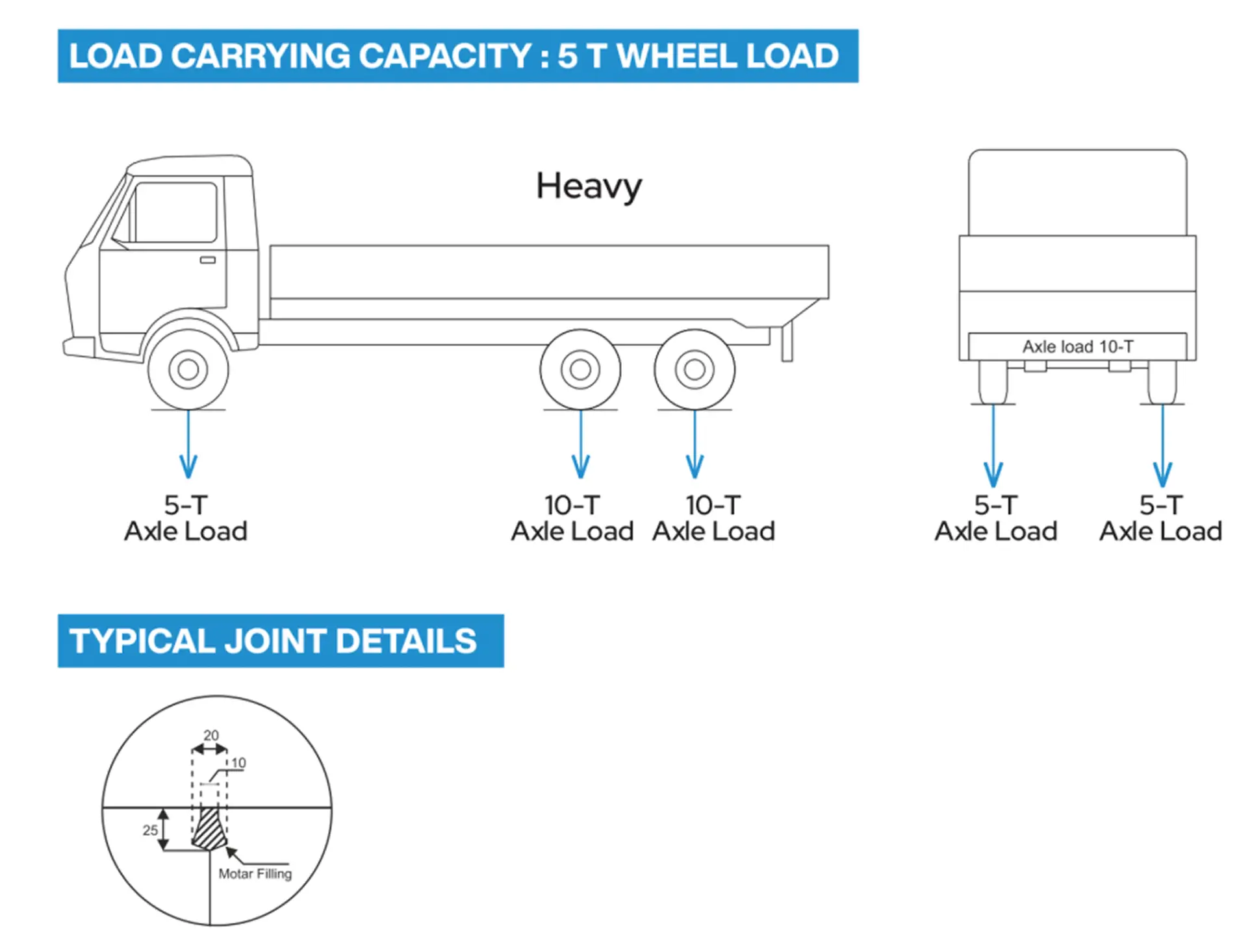

Heavy class — a 10 T axle puts 5 T on each wheel.
The channel sits on a PCC base with a mortar bed; units joint with a groove filled with mortar.
Customized sizes available for mass quantity. Send us a drawing and we'll cast to your exact section, grade and length.

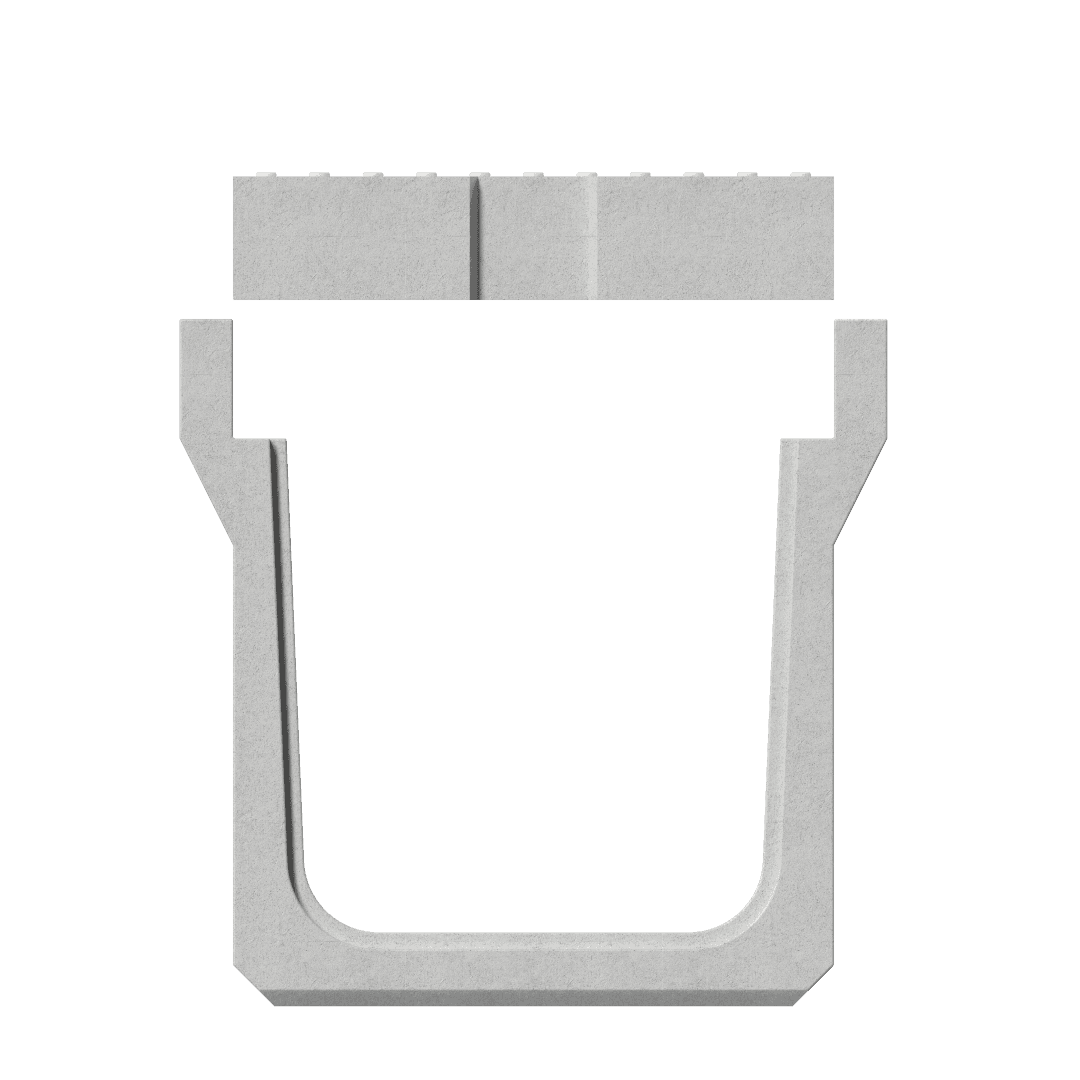

Drag to rotate the U-Drain Heavy (T25) and zoom in to see the section, joints and lifting points.
Common questions on load, jointing and laying. For anything project-specific, send us your drawing.
Its load carrying capacity is a 5 T wheel load — a 10 T axle, 5 T on each wheel — so traffic runs straight over the channel. That's the line we put under highways, crossings and industrial roads where the cover has to match the road around it.
High-performance concrete from M50 to M75, RCC reinforced, cast and strength-tested to IS standards in our Surat yard. Every batch carries test certificates and traceability.
Standard channels are 300 × 300, 450 × 450, 600 × 600, 750 × 750, 900 × 900 and 1200 × 1200 mm, all in 2000 mm lengths. Covers come standard (perforated) or without hole, and lift off for cleaning and access.
A groove joint with mortar filling keeps the line sealed against silt and infiltration. The smooth precast bore keeps water moving and stops silt settling.
A 100 mm thick PCC base (as per site requirement) with a 20 mm thick mortar bed under the channel, and a nominal slope of about 1:1000 in the PCC if required. Units arrive finished and cured, so they're laid in sequence and sealed almost as fast as they're set.
Yes — customized sizes are available for mass quantity. Send a drawing with the section, grade and length and we'll cast to your exact spec.
