The light U-Shape Drain (T6) takes everything that works about our heavy line and puts it in a leaner section for lighter ground. It is the channel for storm water and cable ducts along footpaths, plazas and quiet streets — sealed, smooth-bored and quick to place.
A lighter unit is faster to handle and sits flush with finished paving, so the surface stays clean and even. Same sealed bore, same maintenance-free life — sized for where the load is people and not lorries.
On a footpath or plaza you do not want an open trench and a curing slab holding up the paving. Precast lets the drainage keep pace with the surface — units arrive finished, lay quickly and seal as they go.
It carries storm water drains and power and telecommunication cable ducts along footpaths, public plazas, landscaped streets and service roads — wherever drainage has to be neat, flush and out of the way.
The same sealed channel as the heavy line, in a leaner section that is quick to place.
A leaner section that a small crew can place quickly on footpaths and plazas.
The same smooth, maintenance-free channel as the heavy-duty line.
Sits level with the paving so the finished surface stays clean and even.

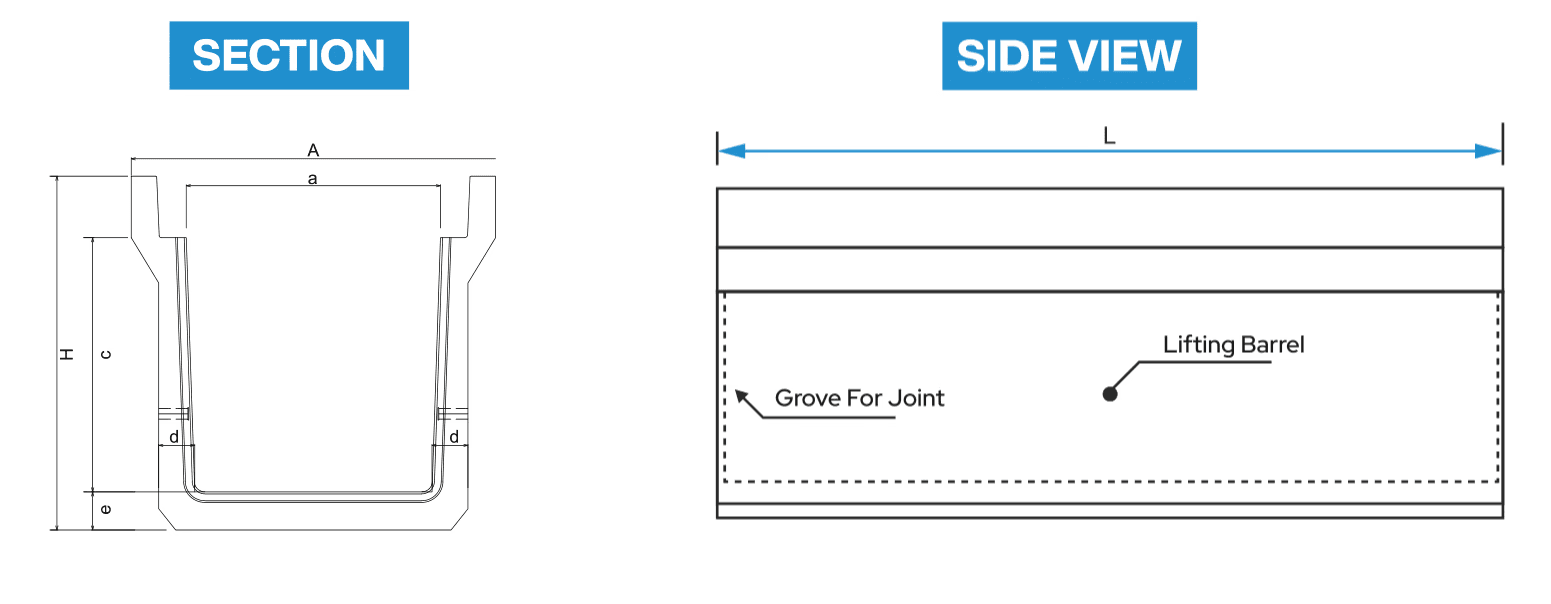

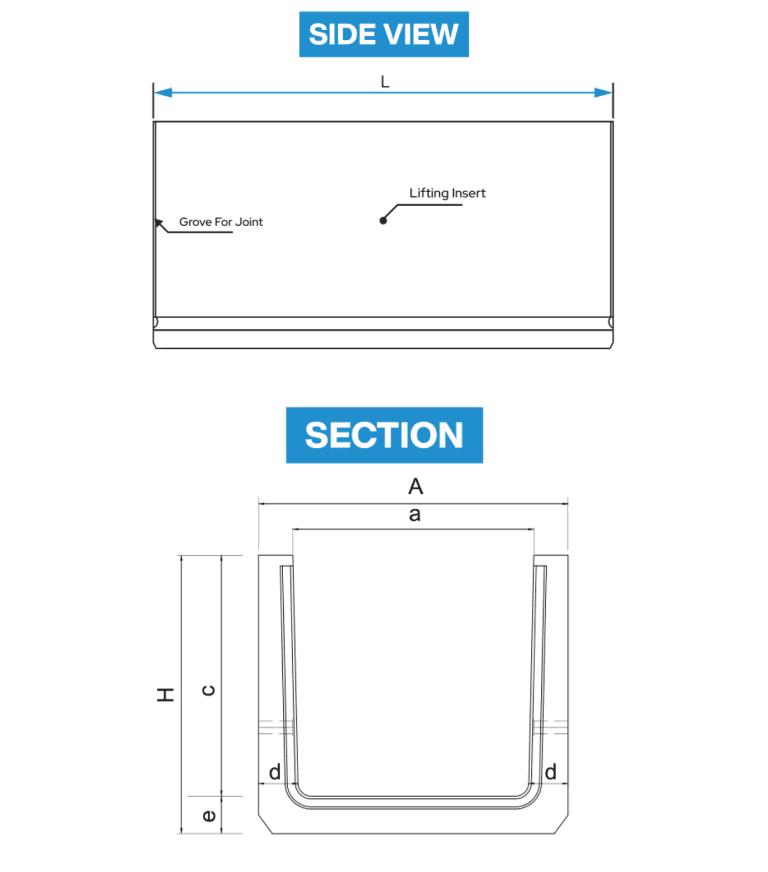

Standard sections for the light U-shape drain (T-6) — for storm water drains and power and telecommunication cable ducts. Customized sizes available for mass quantity.
| Size a × c (mm) | L | A | H | a | c | d | e |
|---|---|---|---|---|---|---|---|
| 300 × 300 | 2000 | 400 | 370 | 300 | 300 | 70 | 70 |
| 300 × 400 | 2000 | 400 | 470 | 300 | 400 | 70 | 70 |
| 450 × 450 | 2000 | 550 | 520 | 450 | 450 | 70 | 70 |
| 600 × 300 | 2000 | 720 | 380 | 600 | 300 | 70 | 80 |
| 600 × 400 | 2000 | 720 | 480 | 600 | 400 | 80 | 80 |
| 600 × 500 | 2000 | 720 | 580 | 600 | 500 | 80 | 80 |
| 600 × 600 | 2000 | 720 | 680 | 600 | 600 | 80 | 80 |
| 750 × 750 | 2000 | 890 | 840 | 750 | 750 | 90 | 90 |

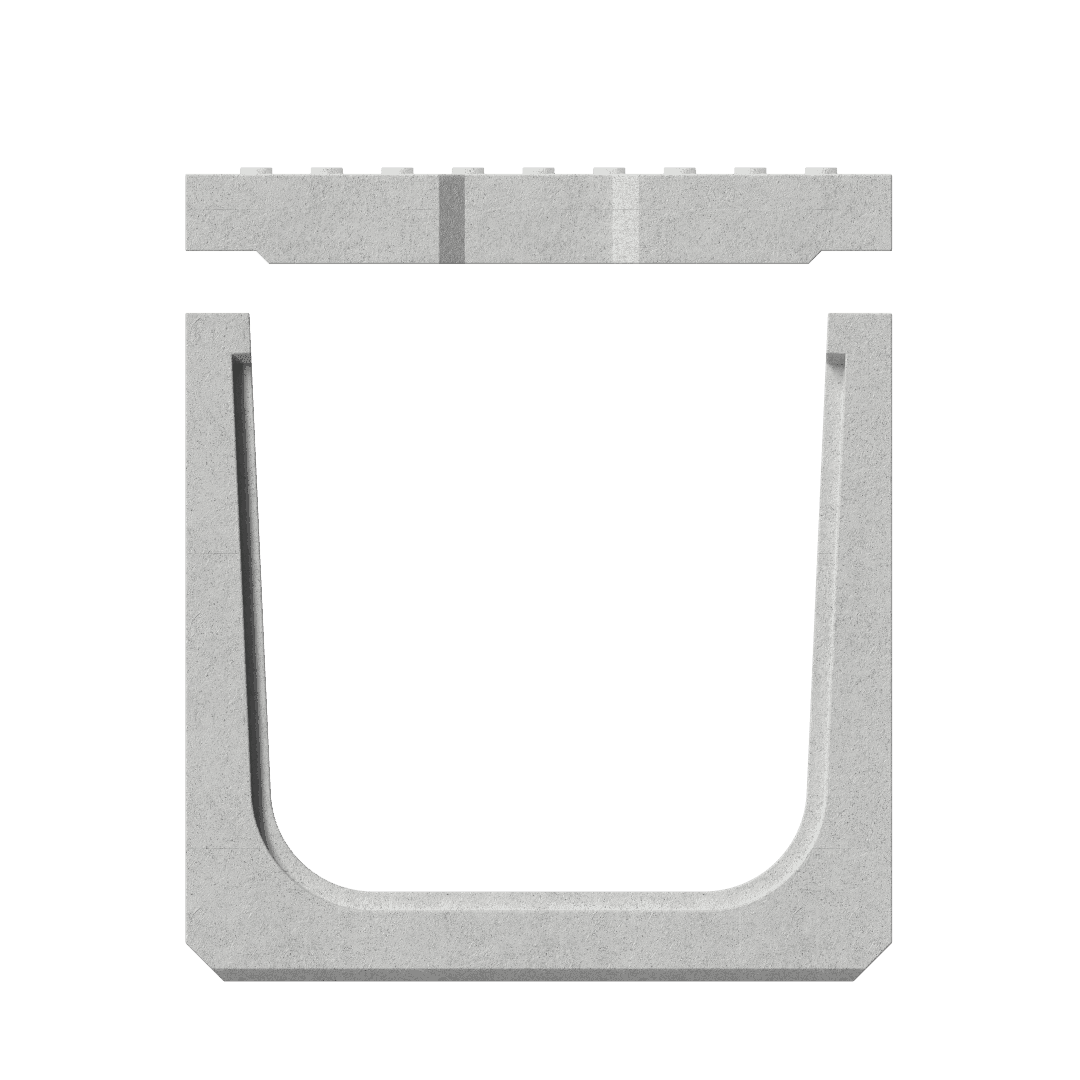

Two cover types: the standard cover (perforated) and the without-hole cover, which lifts by a lifting barrel.
| Drain size A′ × B′ (mm) | A′ | B′ | H |
|---|---|---|---|
| 300 × 300 | 500 | 400 | 60 |
| 450 × 450 | 500 | 550 | 70 |
| 600 × 600 | 500 | 720 | 80 |
| 750 × 750 | 500 | 890 | 90 |

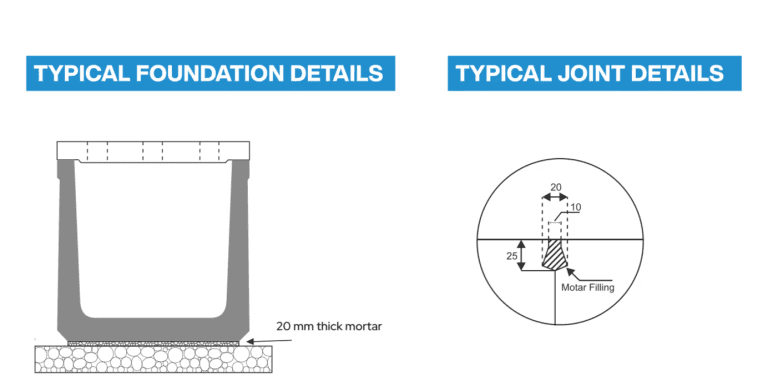

Levelled granular bed with a 20 mm thick mortar seating; groove joint with mortar filling.
Customized sizes available for mass quantity. Send us a drawing and we'll cast to your exact section, grade and length.

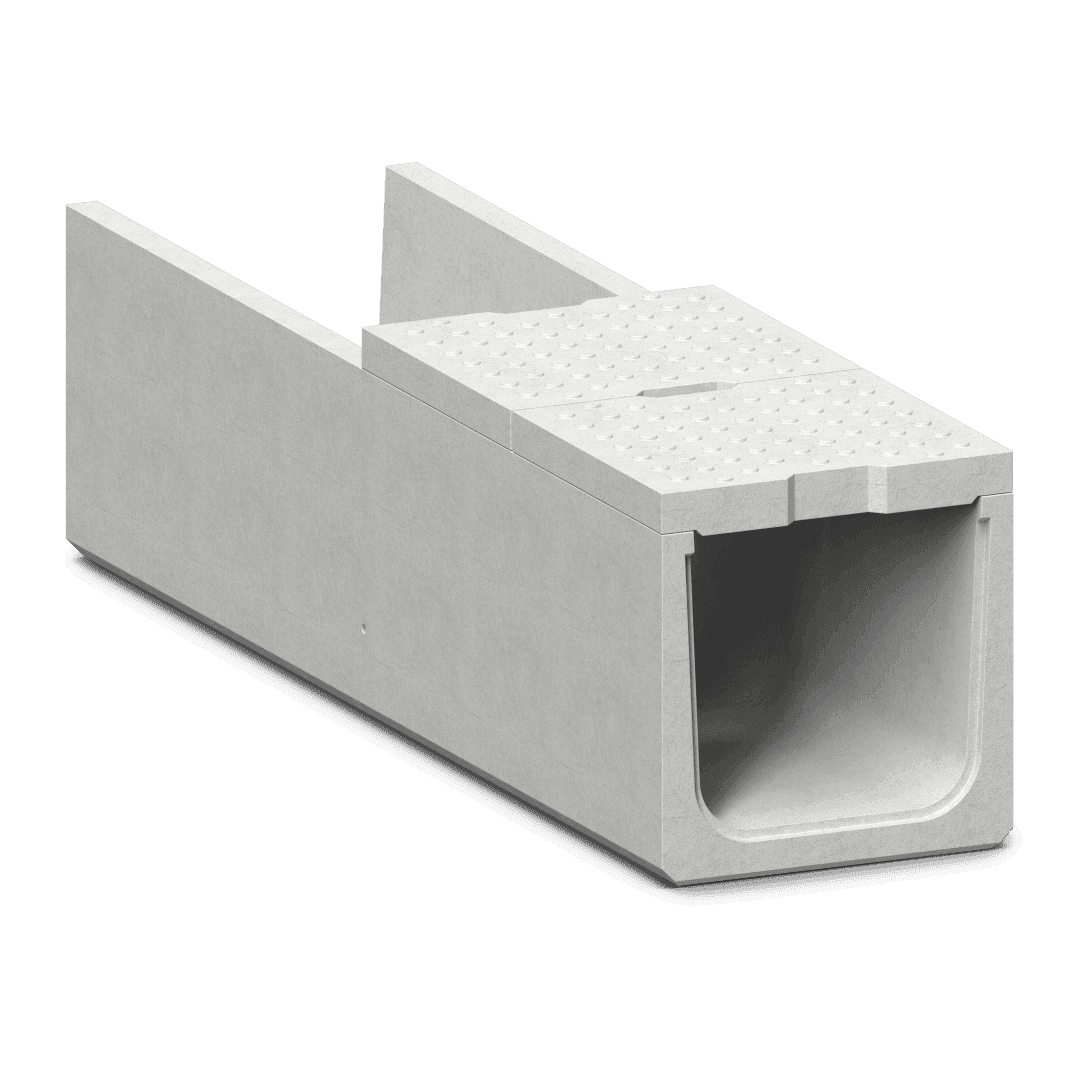

Drag to rotate the U-Drain Light (T6) and zoom in to see the section, joints and lifting points.
Common questions on load, sizing and laying. For anything project-specific, send us your drawing.
It's a light-duty T6 section for pedestrian and low-traffic areas — footpaths, plazas, landscaped streets and service roads. Where vehicles run over the channel, use our heavy (T25) drain, rated for a 5 T wheel load.
High-performance concrete from M50 to M75, RCC reinforced, cast and strength-tested to IS standards in our Surat yard — the same sealed, maintenance-free bore as the heavy line, in a leaner section.
Square sections of 300 × 300, 450 × 450, 600 × 600 and 750 × 750 mm, plus 300 × 400 and 600 × 300/400/500, all in 2000 mm lengths. Covers come standard (perforated) or without hole for the 300, 450, 600 and 750 mm drains.
The section is designed to seat level with finished paving so the surface stays clean and even. A lighter unit is also quicker to place.
A groove joint with mortar filling, on a 20 mm thick mortar bed over a levelled granular base — sealed against silt and infiltration, with the smooth bore keeping water moving.
Yes — customized sizes are available for mass quantity. Send a drawing with the section, grade and length and we'll cast to your exact spec.
